11 H4-50-4-4/133NE

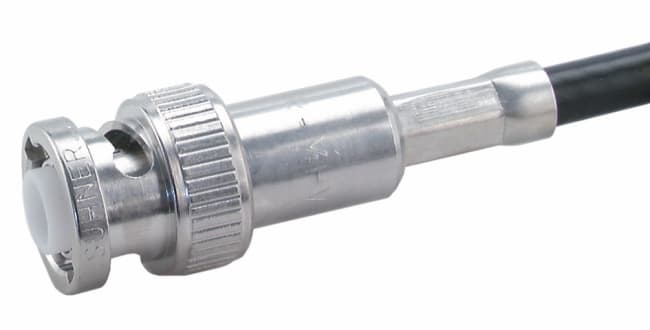

Coaxial connector
|H4, 50 Ohm, Straight cable male
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | U16 |
| Cable1 | RG_59_B/U |
| Cable2 | GX_04273 |
| Centre Contact Material | Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight cable plug |
| CONNECTOR SERIES | H4 |
| Coupling Nut Material | Brass |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 4mm |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | plug |
| ID | 11_H4-50-4-4/133_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 0.3GHz |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Single |
| PATTERN CLASSES | 11 |
| Weight | 0.0153kg |
| CONNECTOR SHAPE | straight |
| Type Number | 11_H4-50-4-4/133_NE |
| OBJECT_ID | 2477493 |
