11_QN-50-7-2/133_NE

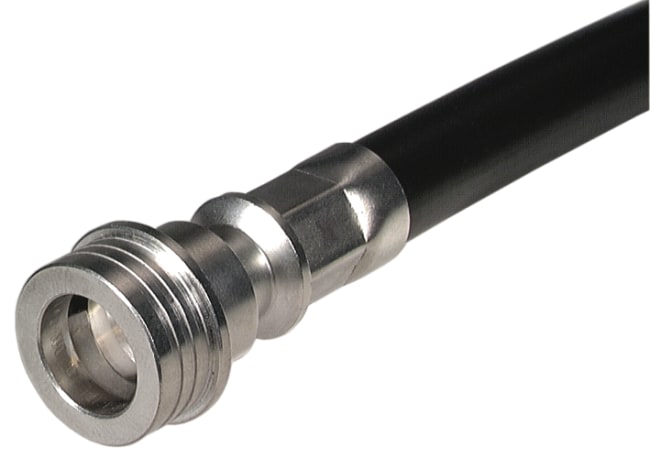

Coaxial connector
|QN, 50 Ohm, Straight cable male
| Frequency min. Range2 | 1GHz |
| VSWR Range 2 | 1.085 |
| Return Loss Range2 | 28dB |
| Highlight2 | QuickLock Interface |
| Cable Entry Centre Contact | crimped |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Frequency max. Range2 | 6GHz |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | U33 |
| Cable Retention Force | 477N |
| Cable1 | ENVIROFLEX_393 |
| Cable2 | RG_393_/U |
| Centre Contact Material | Brass |
| Centre Contact Plating | SUCOPRO Plating |
| Connector Description | Straight cable plug |
| CONNECTOR SERIES | QN |
| Coupling Nut Material | Brass |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 7mm |
| Frequency max. Range1 | 1GHz |
| Frequency min. Range1 | 0GHz |
| Gasket Material | EPDM (Ethylene propylene diene rubber) |
| Gender | plug |
| Highlight1 | SUHNER full crimp cable attachement |
| ID | 11_QN-50-7-2/133_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 11GHz |
| Interface Standards | QN QLF compliant |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 100 |
| Operating Temperature max. | 125°C |
| Operating Temperature min. | -40°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Single |
| PATTERN CLASSES | 11 |
| Return Loss Range1 | 30dB |
| Weight | 0.0205kg |
| CONNECTOR SHAPE | straight |
| Type Number | 11_QN-50-7-2/133_NE |
| VSWR Range 1 | 1.07 |
| OBJECT_ID | 1605291 |
