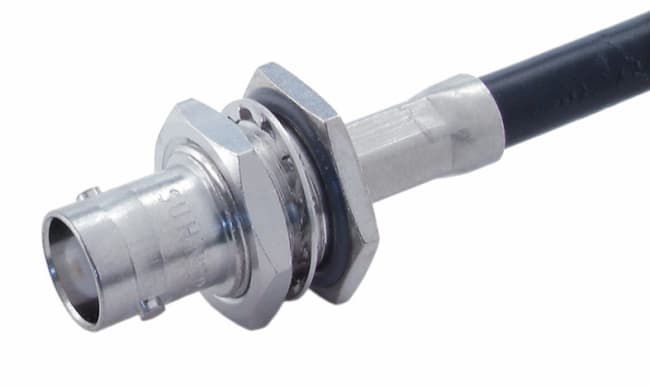

24_BNC-50-3-25/133_NH
Coaxial connector
|BNC, 50 Ohm, Straight bulkhead cable female
| Flange Type | hexagonal flange |
| Fastening Nut Plating | SUCOPLATE (R) Plating |
| Fastening Nut Material | Brass |
| Panel Thickness | 3.5mm |
| Washer Material | Bronze |
| Flange Dimension | hex 17 |
| Washer Plating | SUCOPLATE (R) Plating |
| Highlight2 | SUHNER full crimp cable attachement |
| Cable Entry Centre Contact | crimped |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | U11 |
| Cable Group2 | U41 |
| Cable Retention Force | 257N |
| Cable1 | RG_400_/U |
| Cable2 | ENVIROFLEX_142 |
| Cable3 | RADOX_RF_400 |
| Cable5 | ASNE0293 XF |
| Centre Contact Material | Copper Beryllium Alloy |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight bulkhead cable feed through |
| CONNECTOR SERIES | BNC |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 3mm |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | jack |
| Highlight1 | Rear mount chassis connector |
| ID | 24_BNC-50-3-25/133_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 4GHz |
| Interface Standards | IEC 60169-8_MIL-STD-348A/301_CECC 22120 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Bulk 100 pcs |
| PATTERN CLASSES | 24 |
| Weight | 0.0163kg |
| CONNECTOR SHAPE | straight |
| Type Number | 24_BNC-50-3-25/133_NH |
| OBJECT_ID | 5357373 |
