32_MBX-50-0-2/111_NH

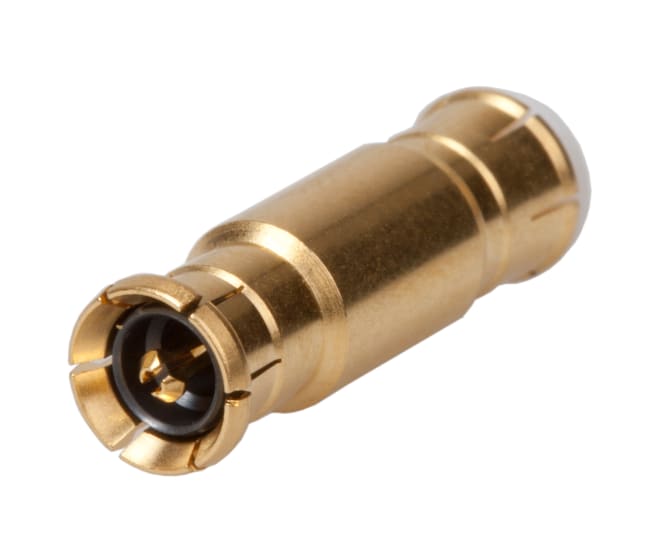

Coaxial adapter
|MBX, 50 Ohm, plug / plug (male / male)
| Interface Standards (2) | HUBER+SUHNER MBX |
| Outer Contact | Bronze, Bronze |
| Centre Contact Plating | SUCOPRO Plating, SUCOPRO Plating |
| Outer Contact Plating | SUCOPRO Plating, SUCOPRO Plating |
| Body Plating | Gold Plating, Gold Plating |
| Adaptor Configuration | within series |
| Centre Contact | Copper Beryllium Alloy, Copper Beryllium Alloy |
| Product is Lead-Free Soldered | not soldered |
| Weight | 0.000881kg |
| Body | Bronze, Bronze |
| Connector Gender 1 | plug (male) |
| Connector Gender 2 | plug (male) |
| Insulator | PFA / PTFE / LCP, PFA / PTFE / LCP |
| 2002/96/EC (WEEE) | special marking needed |
| Class | 1184 |
| 2000/53/EC (ELV) | compliant |
| Connector Series 2 | MBX |
| Connector Series 1 | MBX |
| Connector Description | Adaptor plug/plug |
| Gender | plug/plug |
| Highlight1 | Slide - snap interface |
| ID | 32_MBX-50-0-2/111_N |
| Impedance | 50 |
| Interface Frequency max. | 6GHz |
| Interface Standards | HUBER+SUHNER MBX |
| Junction | adaptor |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 100 |
| Operating Temperature max. | 155°C |
| Operating Temperature min. | -55°C |
| Packaging | Bulk 100 pcs |
| PATTERN CLASSES | 32 |
| CONNECTOR SHAPE | straight |
| Type Number | 32_MBX-50-0-2/111_NH |
| OBJECT_ID | 7137914 |
