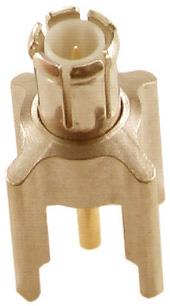

81_MCX-50-0-6/111_NE
Coaxial connector
|MCX, 50 Ohm, Straight PCB female
| Height above PCB HA | 11.2mm |
| Number of Printlegs | 4 |
| Printleg Length HL | 1.8mm |
| Weight | 0.0009kg |
| Engangement Force max. | 25N |
| Height of Stand Off HS | 3.4mm |
| Disengagement Force max. | 20N |
| Disengagement Force min. | 8N |
| Board Mounting Type | through holes |
| External Remarks | PCB connector with stand-offs |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1183 |
| 2006/1907/EC (REACH) | compliant |
| Body Material | Brass |
| Body Plating | Gold Plating (Nickel underplated) |
| Centre Contact Material | Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight PCB plug |
| CONNECTOR SERIES | MCX |
| Gender | plug |
| Highlight1 | PCB connector with stand-offs |
| ID | 81_MCX-50-0-6/111_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 6GHz |
| Interface Standards | IEC 60169-36_CECC 22220 |
| Junction | none |
| 2011/65/EC (RoHS) | compliant |
| Mounting | pcb |
| Number of Matings | 500 |
| Operating Temperature max. | 155°C |
| Operating Temperature min. | -55°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | Gold Plating (Nickel underplated) |
| Packaging | Single |
| PATTERN CLASSES | 81 |
| CONNECTOR SHAPE | straight |
| Type Number | 81_MCX-50-0-6/111_NE |
| OBJECT_ID | 3018916 |
