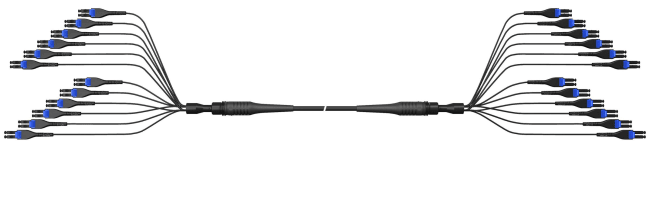

MASTERLINE Classic, LCD/LCD, 24 fibers, 7mm - 70m
MASTERLINE Classic, LCD/LCD, 24 fibers, 7mm - 70m
| H+S | |
|---|---|
| Insertion loss typical | ≤ 0.12 dB , ≤ 0.12 dB |
| Boot colour | Black , Black |
| Return loss | ≥ 50 dB , ≥ 50 dB |
| Interface | connectorized , connectorized |
| Insertion loss 97% | ≤ 0.25 dB , ≤ 0.25 dB |
| Breakout quantity | 12 pcs , 12 pcs |
| Breakout type FO | staggered , staggered |
| bre.usedcable01_crush-resistance-installation | 5000 N/dm |
| Longest breakout length FO | 1100 mm , 1030 mm |
| Mechanical Interface Standard | IEC 61754-20, TIA 604-10-A (LC) , IEC 61754-20, TIA 604-10-A (LC) |
| Polishing | UPC , UPC |
| Fire propagation standard | IEC 60332-1-2IEC 60332-3-25UL 1666 |
| Operation temperature | -40 °C ... 75 °C |
| Outer jacket material | LSFH |
| Clip type | Uniboot , Uniboot |
| Tensile strength during installation | 2000 N |
| Fiber quantity | 24 , 24 |
| Application Area | Outdoor |
| Product code | HH024_EXXXXX_SG038ZG055Z8U8USS - CPR |
| Shortest breakout lenght FO | 380 mm , 550 mm |
| bre.usedcable01_tube-diameter-and-quantity-dyn | 1 x 2.8 mm |
| Gender | Plug , Plug |
| Crush resistance in service | 2000 N/dm |
| Cable Description | Glass armoured multi fiber loose tube cable |
| Cable system family | MASTERLINE Classic |
| Clip family | Classic , Classic |
| Housing colour FO Connector | Black , Black |
| Outer jacket diameter | 7mm |
| Type | Fiber Optic Connector , Fiber Optic Connector |
| Fiber type | E9/125A2 |
| Connector family | LC , LC |
| Strain relief | glass-roving |
| Tensile strength in service | 1200 N |
| bre.usedcable01_bending-minimal-operation-radius | 70 mm |
| CPR class | Dca-s1a,d1,a1 |
| Endface polishing angle | 0° , 0° |
| Installation temperature | -10 °C ... 50 °C |
