Verified for Lead-Free Soldering |
true |
Installation Temperature max. |
60°C |
Operating Temperature min. |
-55°C |
Attenuation Coefficient b max. |
0.022 |
Epsilon r |
1.41 |
Attenuation Coefficient b |
0.02 |
Attenuation Coefficient a |
0.34 |
Attenuation Coefficient a max. |
0.341 |
Calculated Power |
false |
Centre Conductor Diameter |
1.08mm |
Centre Conductor Material |
Aluminium, Copper cladded, Silver plated |
Installation Temperature min. |
-20°C |
Operating Temperature max. |
200°C |
Outer Conductor 2 Description |
Outer conductor |
Outer Conductor 3 Description |
Outer conductor |
Outer Conductor 4 Description |
Outer conductor |
Screen Frequency max. |
18GHz |
Screen Frequency min. |
0.1GHz |
Outer Cond1 Coverage |
100% |
Outer Conductor1 Diameter |
3.58mm |
Outer Conductor1 Material |
Aluminum / TP |
Phase vs Temperature Ratio |
400ppm |
2002/96/EC (WEEE) |
no special marking needed |
Class |
1148 |
2006/1907/EC (REACH) |
compliant |
2000/53/EC (ELV) |
compliant |
Alternative Cable |
EZ_141_TP_M17 |
Armoring 1 Description |
Armor |
Armoring 2 Description |
Armor |
Armoring 3 Description |
Armor |
Armoring 4 Description |
Armor |
Cable Category |
Formable microwave cable |
Cable Family |
Semi-rigid: Semi-rigid, formable microwave cables |
Kabelgruppe - Kabel |
Y26 |
Calc IL/Power up to Freq |
17MHz |
Capacitance |
80.2pF/m |
Centre Conductor Design |
Wire |
CW Power |
364W |
CW Power Frequency |
1GHz |

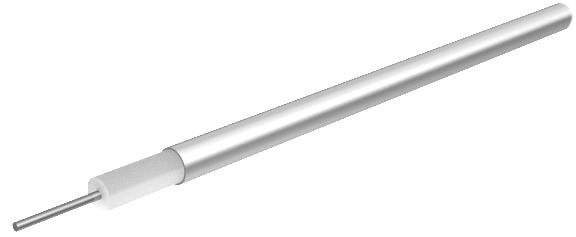

Description |
RG402 dimension, phase stable over temperature, 50 Ohm, 33 GHz, 200°C, ø3.58 mm, no jacket |
Dielectric Diameter |
2.95mm |
Dielectric Material |
Low density fluorine polymer |
Distribution txt |
Semi-rigid, RG402 dimension, phase stable over temperature, 50 Ohm, 33 GHz, 200°C, ø3.58 mm, no jacket |
Halogen Free |
false |
ID |
EZ_141_CT |
Impedance |
50Ohm |
Impedance Tolerance ± |
2Ohm |
Insulation Resistance |
10000000MOhm/m |
2011/65/EC (RoHS) |
compliant |
Number of Screens |
1 |
Only as Assembly |
false |
Operating Frequency |
33GHz |
Operating Voltage |
1.9kV |
Outer Conductor1 Design |
Tube |
Phase Temperature max. |
85°C |
Phase Temperature min. |
-55°C |
Propagation Velocity |
83% of c |
Weight |
1.8kg/100m |
Screen Effectiveness |
120dB |
Signal Delay |
4ns/m |
Static Bend Radius |
10mm |
OBJECT_ID |
7529185 |
