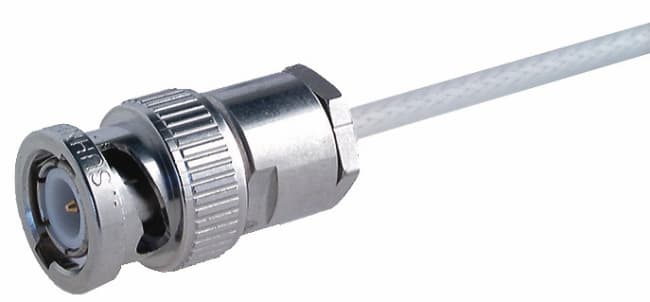

11 BNC-75-2-12/133NE
Coaxial connector
|BNC, 75 Ohm, Straight cable male
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | clamped |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | U6 |
| Cable Retention Force | 120N |
| Cable5 | G 03133-06 |
| Centre Contact Material | Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight cable plug |
| CONNECTOR SERIES | BNC |
| Coupling Nut Material | Brass |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 2mm |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | plug |
| ID | 11_BNC-75-2-12/133_N |
| Impedance | 75 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 1GHz |
| Interface Standards | Interface compatible with IEC 61169-8 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Single |
| PATTERN CLASSES | 11 |
| Weight | 0.0171kg |
| CONNECTOR SHAPE | straight |
| Type Number | 11_BNC-75-2-12/133_NE |
| OBJECT_ID | 5585190 |
