22 SHV-50-0-2/133NE

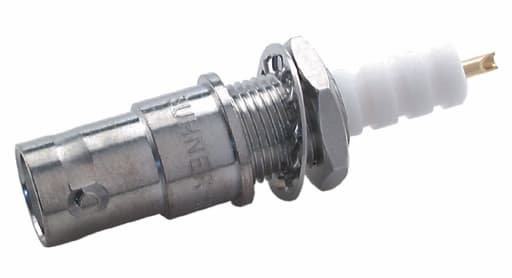

Coaxial connector
|SHV, 50 Ohm, Straight bulkhead receptacle, female
| Flange Type | round flange |
| Fastening Nut Plating | SUCOPLATE (R) Plating |
| Fastening Nut | Brass |
| Terminal Dimension D2 | 6mm |
| Terminal Dimension D1 | 1.7mm |
| Panel Thickness | 5.3mm |
| Terminal Dimension L2 | 22mm |
| Terminal Dimension L1 | 26.1mm |
| Tab Style | solder end |
| Chassis Torque | 2Nm |
| Washer | Bronze |
| Flange Dimension | dia. 12.5 |
| Washer Plating | SUCOPLATE (R) Plating |
| Weight | 0.0115kg |
| External Remarks | High voltage connector Working voltage (at sea level) 3.5 kV rms |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1182 |
| 2006/1907/EC (REACH) | compliant |
| Body | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Centre Contact | Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight bulkhead receptacle jack |
| CONNECTOR SERIES | SHV |
| Gender | jack |
| Highlight1 | Front mount chassis connector |
| ID | 22_SHV-50-0-2/133_N |
| Impedance | 50 |
| Insulator | PFA / PTFE |
| Interface Frequency max. | 0.3GHz |
| Interface Standards | IEC 60498_MIL-STD-348A/314 |
| Junction | receptacle |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Outer Contact | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Single |
| PATTERN CLASSES | 22 |
| CONNECTOR SHAPE | straight |
| Type Number | 22_SHV-50-0-2/133_NE |
| OBJECT_ID | 3068555 |
