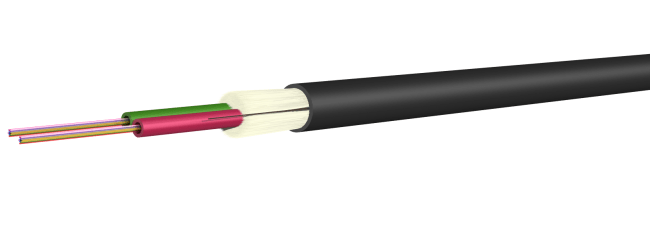

24-12G50/W(ZNG)Y-G94-F
| Water penetr Standard | IEC 60794-1-2 F5B |
| Outer Jacket Width | 9.4mm |
| Stripping | Ripcord for easy jacked removal |
| Tension Test Standard | IEC 60794-1-2 E1 |
| Strain Reliefed Armouring | Rodent-protected, glass-armoured |
| Wavelength | for singlemode at 1550nm, for multimode at 1300nm |
| Layer Type | 2 Ripcords |
| Temperature Standard | IEC 60794-1-22 F1 |
| Crush Test Standard | IEC 60794-1-2 E3 |
| Installation | High chemical resistance against acids/alkalies |
| Comments | Small outer diameter Slightly oval outer Jacket for compensation of fiber excess lenght by cable bending Time-saving installation as there is no need to heat the twistet loose tube to achieve a straight form |
| Class | 1032 |
| Application | For use in ducts and in unprotected environment |
| Cable Type | Metal free indoor and outdoor cable |
| Cable Description | Twintube |
| Outer Jacket Type | Outer jacket / LD-PE |
| Outer Jacket Ø | 8.8mm |
| Reinforcement Type | Reinforcement / glass-roving |
| Number of max. Fibres | 24 |
| Tube Type | Multi-fiber loose tube, up to 24 fibers each |
| Fire behavior | Halogen free and non-corrosive fire gases |
| ID | 48-.../W(ZNG)Y-...94 |
| OBJECT_ID | 4381977 |
