33_4310-PC35-50-X1/133_NE

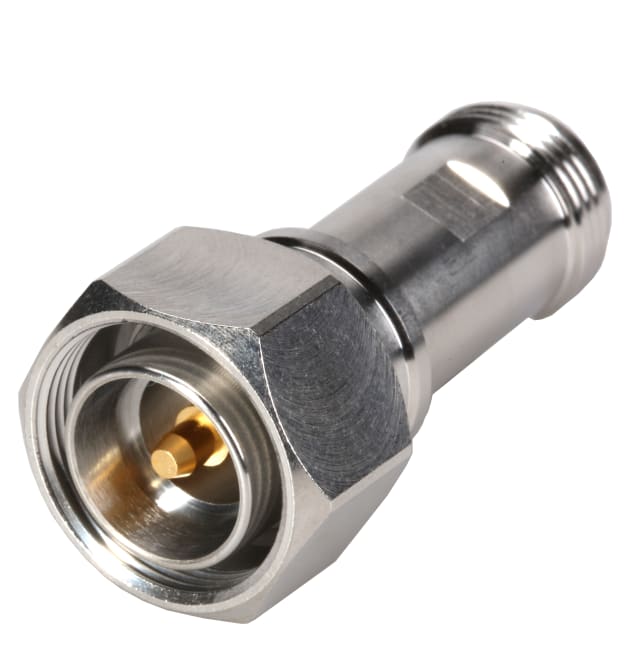

Coaxial adapter
|4.3-10 - PC 3.5, 50 Ohm, male/female
| Interface Standards (2) | IEC 60169-23 |
| Frequency min. Range2 | 4GHz |
| Outer Contact | Brass, Brass |
| Centre Contact Plating | SUCOPRO Plating, SUCOPRO Plating |
| VSWR Range 2 | 1.052 |
| Outer Contact Plating | SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
| Body Plating | SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
| Return Loss Range2 | 32dB |
| Adaptor Configuration | between series |
| Centre Contact | Copper Beryllium Alloy, Copper Beryllium Alloy |
| Weight | 0.0349kg |
| Body | Brass, Brass |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Connector Gender 1 | plug (male) |
| Connector Gender 2 | jack (female) |
| Insulator | PFA / PTFE, PFA / PTFE |
| Coupling Nut | Brass |
| 2002/96/EC (WEEE) | special marking needed |
| Class | 1184 |
| Connector Series 2 | PC 3.5 |
| Connector Series 1 | 4.3-10 |
| Frequency max. Range2 | 6GHz |
| Connector Description | Adaptor plug/jack |
| Frequency max. Range1 | 4GHz |
| Frequency min. Range1 | 0GHz |
| Gender | plug/jack |
| ID | 33_4310-PC35-50-X1/133_N |
| Interface Frequency max. | 12GHz |
| Interface Standards | IEC 61169-54 |
| Junction | adaptor |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 90°C |
| Operating Temperature min. | -55°C |
| Packaging | Single |
| PATTERN CLASSES | 33 |
| Return Loss Range1 | 36dB |
| CONNECTOR SHAPE | straight |
| Type Number | 33_4310-PC35-50-X1/133_NE |
| VSWR Range 1 | 1.032 |
| OBJECT_ID | 7138072 |
