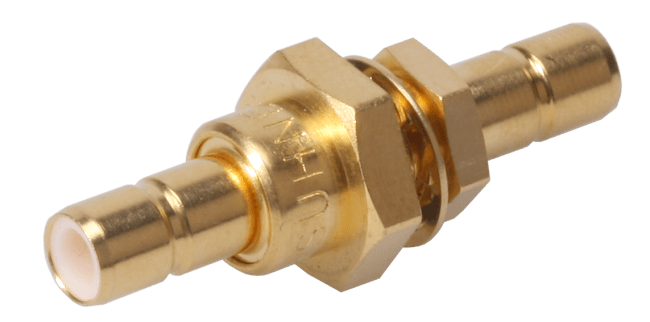

34 SMB-50-0-2/111NE
Coaxial adapter
|SMB, 50 Ohm, Bulkhead,female/female
| Interface Standards (2) | IEC 60169-10_MIL-STD-348A/311_CECC 22130 |
| Outer Contact | Brass, Brass |
| Fastening Nut Plating | Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| Flange Type | hexagonal flange |
| Centre Contact Plating | Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| Outer Contact Plating | Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| Panel Thickness | 2mm |
| Body Plating | Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| Flange Dimension | hex 6 |
| Adaptor Configuration | within series |
| Washer Plating | Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| Centre Contact | Brass, Brass |
| Washer | Bronze, Bronze |
| Weight | 0.0013kg |
| Body | Brass, Brass |
| External Remarks | VSWR 2 - 4 GHz: < 1.24 |
| Connector Gender 1 | jack (female) |
| Connector Gender 2 | jack (female) |
| Fastening Nut | Brass, Brass |
| Insulator | PFA / PTFE, PFA / PTFE |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1184 |
| 2000/53/EC (ELV) | compliant |
| Connector Series 2 | SMB |
| Connector Series 1 | SMB |
| Connector Description | Bulkhead adaptor jack/jack |
| Frequency max. Range1 | 4GHz |
| Frequency min. Range1 | 2GHz |
| Gender | jack/jack |
| ID | 34_SMB-50-0-2/111_N |
| Impedance | 50 |
| Interface Frequency max. | 4GHz |
| Interface Standards | IEC 60169-10_MIL-STD-348A/311_CECC 22130 |
| Junction | adaptor |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Packaging | Single |
| PATTERN CLASSES | 34 |
| Return Loss Range1 | 19dB |
| CONNECTOR SHAPE | straight |
| Type Number | 34_SMB-50-0-2/111_NE |
| VSWR Range 1 | 1.24 |
| OBJECT_ID | 3097275 |
