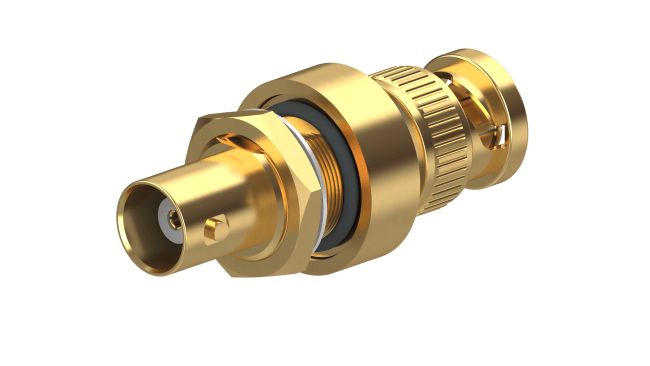

3406.01.0003 - Slim Line / BNC-M/F
| Gender Protected Side | jack (female) |
| Side of Bulkhead | protected side |
| Temperature Shock | MIL-STD-202, Method 107, Cond. B |
| CW Power Frame | 60W |
| Current Handling 8/20 | 10 single / 5 multiple |
| Vibration | MIL-STD-202, Method 204, Cond. D |
| Weight | 45g |
| IP Rating | IP20 |
| Connector Port 1 | BNC |
| Insertion Loss Frame | 0.2dB |
| Frequency min. Frame | 0MHz |
| Residual Pulse Energy | 250µJ |
| Description Port2 | protected |
| Frequency max. Frame | 4000MHz |
| Description Port1 | unprotected |
| Center Contact Plating (Port 2) | Gold Plating (without Nickel underplating) |
| Right Angle | false |
| PIM 3rd Frame | not specified |
| Center Contact (Port 1) | Brass |
| Gender Unprotected Side | plug (male) |
| Gas Tube | Yes DC, GDT included |
| Center Contact (Port 2) | Copper Beryllium Alloy |
| Return Loss Frame | 20dB |
| Connector Port 2 | BNC |
| Moisture Resistance | MIL-STD-202, Method 106 |
| Mounting Hole | 4 |
| Highlight4 | Fix installed GDT, static sparkover-voltage nom. 200 V |
| Center Contact Plating (Port 1) | Gold Plating (without Nickel underplating) |
| Highlight3 | The protector can also be installed reversely |
| Highlight2 | DC continuity for remote powering |
| 2002/96/EC | special marking needed |
| Class | 1217 |
| 2006/1907/EC (REACH) | compliant |
| Housing | Brass |
| RF Protector Description | Slim Line GDT technology |
| Housing Plating | Silver / Gold Plating |
| Highlight1 | Broad-band design |
| ID | 3406.01.0003 |
| Impedance | 50 |
| 2011/65/EC | compliant acc. Annex III |
| Number of Matings | 500 |
| Operating Temperature max. | 85°C |
| Operating Temperature min. | -40°C |
| OBJECT_ID | 8132339 |
