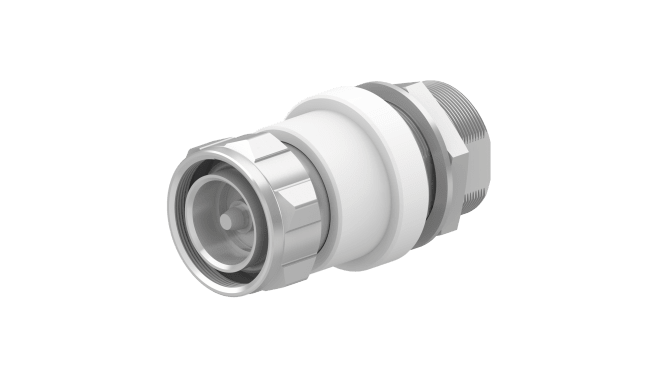

9077.41.0036 1 kV, 360-3000 MHz 7/16m-7/16f
| H+S | |
|---|---|
| Side of bulkhead | Port 2 |
| PIM 3rd order | -160 dBc typ. , -160 dBc |
| Moisture resistance according | MIL-STD-202, Method 106 |
| Impedance | 50 Ω |
| Power avg. / peak | ≤750 W / ≤10 kW |
| Vibration according | MIL-STD-202, Method 204, Cond. D |
| Insertion loss | ≤ 0.1 dB |
| Storage temperature | -40 °C ... 85 °C |
| Operation temperature | -40 °C ... 85 °C |
| Product description | Broadband HIGH VOLTAGE DC-DC Block |
| Thermal shock according | MIL-STD-202, Method 107, Cond. B |
| Galvanic isolation outer conductor | Yes |
| Insertion loss typical | ≤ 0.1 dB |
| Product code | 9077.41.0036 |
| Main path connectors | Port 1: 7/16 jack (female)Port 2: 7/16 plug (male) |
| Housing material / plating | Brass |
| Galvanic isolation inner conductor | Yes |
| Ingress protection (IP Rating) | IP67 |
| Leakage current | ≤ 5 µA |
| Test voltage | 1200 V |
| Blocking voltage outer conductor | ≤ 1000 V DC |
| Frequency frame | 360 MHz to 3000 MHz |
| Return loss typical | ≥ 20 dB , ≥ 26 dB |
| Center contact, material / plating | Port 1: Bronze / Silver PlatingPort 2: Brass / Silver Plating |
| Frequency range | 650 MHz ... 2700 MHz |
| Blocking voltage center conductor | ≤ 1000 V DC |
| Test leakage current max | 10 µA |
| Peak power frame | ≤ 10 kW |
| CW power frame | ≤ 750 W |
| Weight | 215 g |
