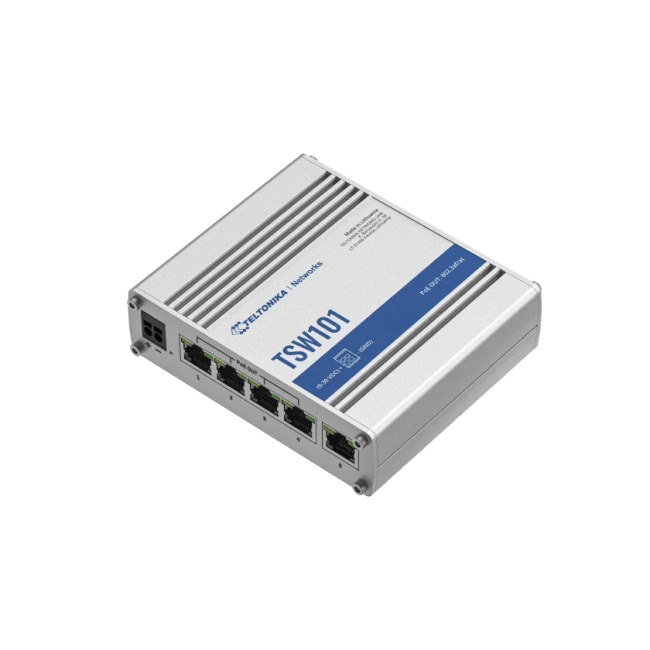

TSW101 Industrial POE+ Ethernet Switch 5x1000 Mbps, PoE

Ethernet

• ETH

  5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

• IEEE 802.3 series standards

  802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

POE OUT

• PoE ports

  Port 1-4

• PoE Max Power per Port (at PSE)

  30 W

• Total PoE Power Budget (at PSE)

  60 W

• Maximum Ethernet cable length

  100 m

• PoE standards

  802.3af and 802.3at Alternative A

Performance Specifications

• Bandwidth (Non-blocking)

  10 Gbps

• Packer buffer

  128 KB

• MAC address table size

  2K entries

• Jumbo frame support

  9216 bytes

Power

• Connector

  2-pin industrial DC power socket

• Input voltage range

  9 – 30 VDC

• PoE-out input voltage range

  9 – 30 VDC

• Power consumption

  Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W

• PSU

  12 V or 24 V car battery-powered. No additional PSU is required.

Physical Interfaces

• Ethernet

  5 x RJ45 ports, 10/100/1000 Mbps

• Status LEDs

  1 x Power LED, 10 x ETH status LEDs

• Power

  1 x 2-pin industrial DC power socket

• Other


  1 x Grounding screw

Physical Specification

• Casing material

  Aluminium housing

• Dimensions (W x H x D)

  115 x 32 x 95 mm

• Weight

  384 g

• Mounting options

  DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  5% to 95% non-condensing

• Ingress Protection Rating

  IP30

Regulatory & Type Approvals

• Regulatory

  CE, REACH, RoHS, WEEE

  TSW101 CE

  TSW101 UKCA

  TSW101 FCC

  TSW101 IC

  TSW101 CB

  TSW101 RCM

  E-Mark

EMC Emissions & Immunity

• Standards

  EN 55032:2015 + A11:2020 + A1:2020

  EN 55035:2017 + A11:2020

• ESD

  EN 61000-4-2:2009

• Radiated Immunity

  EN IEC 61000-4-3:2020

• EFT

  EN 61000-4-4:2012

• Surge immunity (AC Power Line)

  EN 61000-4-5:2014 + A1:2017

• CS

  EN 61000-4-6:2014

Safety

• Standards

  CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017

  RCM: AS/NZS 62368.1:2022

  CB: IEC 62368-1:2018
