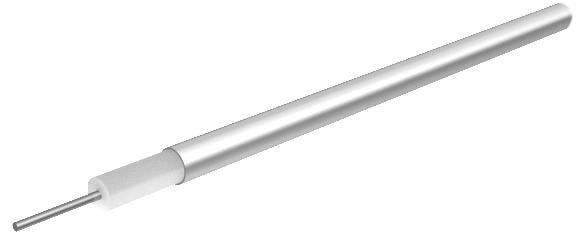

SR_47_M17_COIL
| Verified for Lead-Free Soldering | true |
| Installation Temperature max. | 60°C |
| Operating Temperature min. | -55°C |
| Attenuation Coefficient b max. | 0.0476 |
| Epsilon r | 2.07 |
| Attenuation Coefficient b | 0.03967 |
| Attenuation Coefficient a | 1.04044 |
| Attenuation Coefficient a max. | 1.24853 |
| Calculated Power | false |
| Centre Conductor Diameter | 0.29mm |
| Centre Conductor Material | Steel, Copper+Silver plated |
| Installation Temperature min. | -20°C |
| Operating Temperature max. | 100°C |
| Outer Conductor 2 Description | Outer conductor |
| Outer Conductor 3 Description | Outer conductor |
| Outer Conductor 4 Description | Outer conductor |
| Screen Frequency max. | 18GHz |
| Screen Frequency min. | 0.1GHz |
| Outer Cond1 Coverage | 100% |
| Outer Conductor1 Diameter | 1.19mm |
| Outer Conductor1 Material | Copper |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1148 |
| 2006/1907/EC (REACH) | compliant |
| 2000/53/EC (ELV) | compliant |
| Alternative Cable | EZ_47_TP_M17 |
| Armoring 1 Description | Armor |
| Armoring 2 Description | Armor |
| Armoring 3 Description | Armor |
| Armoring 4 Description | Armor |
| Cable Category | Formable microwave cable |
| Cable Family | Semi-rigid: Semi-rigid, formable microwave cables |
| Kabelgruppe - Kabel | Y15 |
| Calc IL/Power up to Freq | 17MHz |
| Capacitance | 105pF/m |
| Centre Conductor Design | Wire |
| CW Power | 32W |
| CW Power Frequency | 1GHz |
| Description | MIL style, 50 Ohm, 107 GHz, 100°C, ø1.19 mm, no jacket |
| Dielectric Diameter | 0.93mm |
| Dielectric Material | PTFE (Polytetrafluoroethylene) |
| Distribution txt | Semi-rigid, MIL style, 50 Ohm, 107 GHz, 100°C, ø1.19 mm, no jacket |
| Halogen Free | false |
| ID | EZ_47_M17 |
| Impedance | 50Ohm |
| Impedance Tolerance ± | 2.5Ohm |
| Insulation Resistance | 100000000MOhm/m |
| 2011/65/EC (RoHS) | compliant |
| Number of Screens | 1 |
| Only as Assembly | false |
| Operating Frequency | 107GHz |
| Operating Voltage | 1kV |
| Outer Conductor1 Design | Tube |
| Propagation Velocity | 69.5% of c |
| Weight | 0.71kg/100m |
| Screen Effectiveness | 120dB |
| Signal Delay | 4.8ns/m |
| Static Bend Radius | 3.18mm |
| OBJECT_ID | 6425137 |
